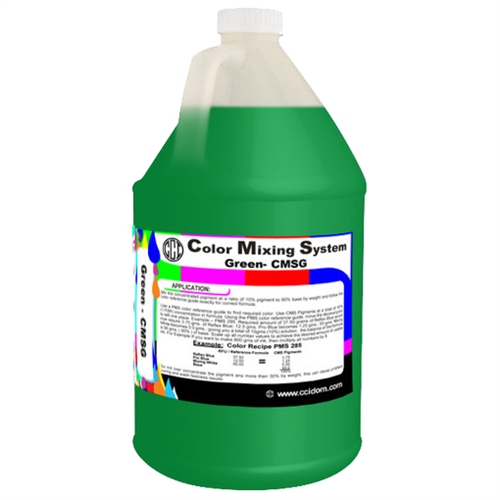

CCI CMS Pigment Concentrate - Green
CCI's CMS Color Matching System is a 14 color water based discharge color mixing system for brilliant and accurate color matches. When combined with a Clear Waterbase Base or Clear Discharge Base, the result is bright, vivid colors with an amazingly soft feel. When printing on white 100% cotton fabrics the cost per print is less than that of plastisol. This is a PVC free pigment system designed for printing on 100% cotton fabrics. With this kit, you can start mixing extremely accurate pantone matches for your customers, while simultaneously offering them the super soft hand feel they desire. The kit includes 14 8oz. bottles of super concentrated mixing pigments, a gallon of discharge clear mixing base, and 216 grams of discharge activator. The kit also works seamlessly with CCI's free online CMS software, which will give you perfect mixing formulas for whatever PMS color you desire.
Product Details and Usage
Usage: Use a PMS mixing color guide or the CCI Color management software to mix the pigments into a base. Mix 10% pigment to 90% base. If using the PMS color guide, move the decimal point in the guide one digit to the left, bringing it from 100 to 10. Then follow the formula in the guide and mix 10% pigment to 90% base.
Curing Temperature: 320 Degrees (160 C)
Fusion Time: Approximately 90 seconds depending on the base. Times may be longer depending on the curing rate of your dryer.
Maximum Pigment load: Not to exceed 30%
Finish Appearance: Matte
Bleed Resistant: None
Squeegee: 70 to 80 Durometer
Squeegee Angle: 45 Degrees
Print Stroke: Maximum speed, lighter pressure
Emulsion: Use TX-Discharge or any water resistant emulsion
Underlay: Discharge White or Discharge Base with 4 to 6% activator
Mesh Count: 86 to 305 mesh
Clean Up: Use EnviroSolv or soap and water
Color Range: Pigments and Fluorescents
Substrate Type: 100% Cotton
Substrate Color: Lights or Darks using the Discharge base and 4 to 6% activator
Recommended Printing Techniques
The screen should have an ample amount of ink in the frame to flood the screen after each print. Always flood the screen to prevent drying in the screen. We recommend using Water Base and Discharge Retarder to slow down the air drying process of the ink. To test best fusion of the garment, wash test to see if you are getting a complete cure from your dryer. Always put a lid on your ink even when you are printing to keep the ink fresh and keep it from drying, especially on hot days.
