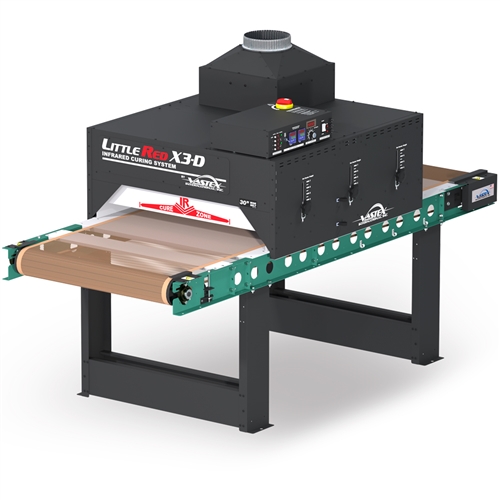

Vastex LittleRed X3D Dual Zone Conveyor Dryer 30" x 7.4'
The multi-purpose LittleRed X3-D infrared dryer cures direct-to-garment (DTG) printed textiles as well as plastisol, water-based and discharge-printed garments at higher rates than possible with conventional dryer designs.
Available in 30, 54 and 78 in. (76, 137, and 198 cm) belt widths, it features a high-powered pre-heating zone that rockets ink temperatures past 300°F (149°C) within the first several inches of conveyor travel, maximizing the distance and dwell time for optimum curing of any ink, allowing increased conveyor belt speeds and dryer output.
The Little Red X3-D-30 model is equipped with a 30 in. (76.2 cm) wide conveyor belt and three 24 in. (61 cm) wide infrared heaters (8900W @ 240V total wattage) and can cure 360+ plastisol-printed garments/h, 185+ water-based or discharge-printed garments/h, and up to 51+ garments/h inkjet printed with digital white ink at 3 minutes dwell time.
This model comes with a powered exhaust system as standard to rapidly remove moisture and air contaminates from the heating chamber, as well as to cool the skin and controls. The conveyor length is 66 in. (168 cm), with a low friction belt aligner and belt speed controls to precisely set dwell times from 35 seconds up to four minutes.
Can cure plastisol, water-based, discharge and inkjet-printed white ink in record time
240V/8,900 total wattage
Industry-leading 15-year heater warranty
Closely spaced coils provide high-density, medium-wavelength infrared heat for maximum cure speed without cold spots or under-curing
Low friction belt aligner and DC belt speed control with digital display
"X-Series" Conveyor Belt Roller Tracking System with Teflon coated fiberglass belt and HD belt motor
Dual digital PID Temperature controller is accurate to +/-1°F
2 - 7 in. (5 - 18 cm) belt-to-heater clearance, adjustable separately on each side for each heater
High powered exhaust to remove fumes and moisture
- 360+ garments/hr for plastisol inks
- 185+ garments/hr for water-based or discharge inks
- 51+ garments/hr for DTG digital white ink @ 3 minutes
This dryer does not come with a plug. A plug will need to be added to the supplied pigtail, or the machine will need to be wired direct. We recommend speaking with an electrician if you have any questions.
